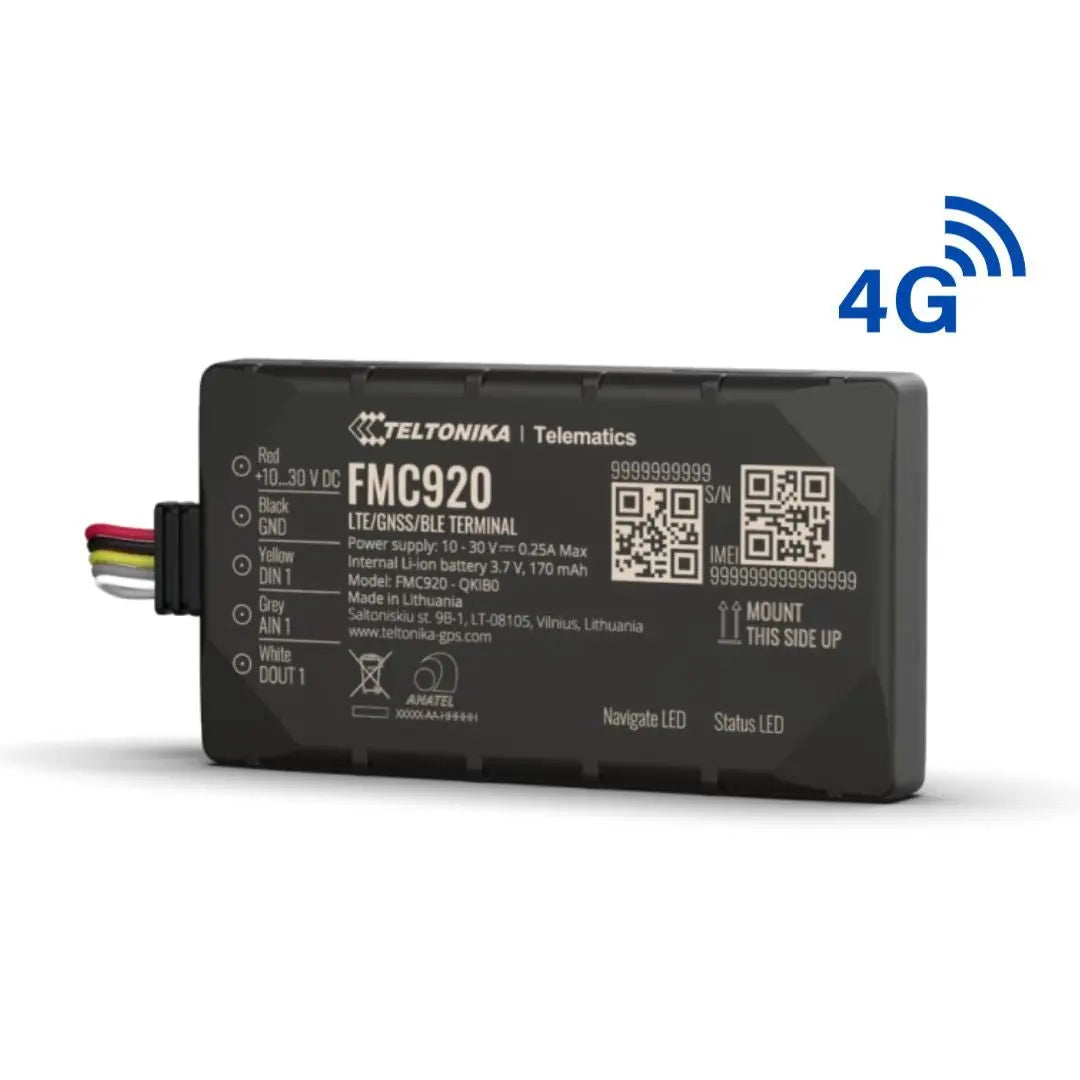

GPS Teltonika FMC920 4G

El Teltonika FMC920, un dispositivo avanzado para la gestión y control de flotas, ha sido diseñado con la premisa de optimizar el rendimiento de su flota. Con cobertura 4G LTE Cat 1 y respaldo 2G, garantiza un soporte de red sólido para el futuro. Ofrece extensas capacidades de monitoreo remoto, como el bloqueo de motor a distancia y otras medidas de control de flota, brindándole un control constante sobre sus vehículos. Integrando un escenario de conducción ecológica, el FMC920 fomenta el consumo eficiente de combustible, prolonga la vida útil del vehículo y mejora la seguridad vial. Gracias a su diseño delgado de 12 mm, la instalación en espacios reducidos es fácil. En resumen, el FMC920 destaca como una solución eficaz y de alta calidad para la gestión y control de flotas, proporcionando innovación y mejoras efectivas para su negocio.

Especificaciones

Name

FMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500

FMC920-QKIB0: Quectel EG915U-LA with Teltonika TM2500

Technology

LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH

GNSS

GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver

33 channel

Tracking sensitivity

-165 dBM

Position Accuracy

< 2.5 m CEP

Velocity Accuracy

< 0.1 m/s (within +/- 15% error)

Hot start

< 1 s

Warm start

< 25 s

Cold start

< 35 s

Celular Technology

LTE Cat 1, GSM

2G bands

FMC920-QJIB0: GSM: B2/B3/B5/B8

FMC920-QKIB0: GSM: B2/B3/B5/B8

4G LTE Cat 1 bands

FMC920-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28

FMC920-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66

Data transfer

LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL)

LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)

GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)

Data support

SMS (text/data)

Energía

Input voltage range

10–30 V DC with overvoltage and reverse polarity protection

Internal Back-up battery

170 mAh Li-Ion battery, 3.7 V (0.63 Wh)

Internal fuse

3A, 125V

Power consumption

At 12V < 2 mA (Ultra Deep Sleep)

At 12V < 3 mA (Deep Sleep)

At 12V < 8 mA (Online Sleep)

At 12V < 12 mA (GPS Sleep)

At 12V < 28 mA (nominal)

Bluetooth

Specification

4.0 + LE

Supported peripherals

Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support

Entorno operativo

Operating temperature (with battery)

-20 °C to +40 °C

Operating temperature (without battery)

-40 °C to +85 °C

Storage temperature (without battery)

-40 °C to +85 °C

Storage temperature (with battery)

-20 °C to +60 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP54

Battery charge temperature

0 °C to +45 °C

Battery discharge temperature

-20 °C to +60 °C

Battery storage temperature

-20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

Interfaz

Digital Inputs

1

Digital Outputs

1

Analog Inputs

1

GNSS antenna

Internal High Gain

Cellular antenna

Internal GSM High Gain

USB

2.0 Micro-USB

LED indication

2 status LED lights

SIM

Micro-SIM

Memory

128MB internal flash memory

Especificaciones físicas

Dimensions

79 x 43 x 12 mm (L x W x H)

Weight

54 g

Características

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update

FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)

SMS

Configuration, Events, DOUT control, Debug

GPRS commands

Configuration, DOUT control, Debug

Time Synchronization

GNSS, NITZ, NTP

Fuel monitoring

LLS (Analog), OBDII dongle

Ignition detection

Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)

Certificaciones y homologaciones

Regulatory

FMC920-QJIB0: CE/RED, E-Mark, CITC, TRA, RCM, RoHS, REACH

FMC920-QKIB0: RCM, RoHS, Anatel (in progress)
